3系列齿轮泵

Group 3 is a range of peak performance fixed-displacement gear pumps. Constructed of a high-strength extruded aluminum body with aluminum cover and flange, all pumps are pressure balanced for exceptional efficiency.

Group 3 gear pumps' attributes
• Wide range of displacements from 22 to 90 cm3/rev [from 1.34 to 5.49 in3/rev]

• Continuous pressure rating up to 250 bar [3625 psi]

• Speeds up to 3000 min-1 (rpm)

• SAE, DIN and European standard mounting flanges

• High quality case hardened steel gears

• Multiple pump configurations in combination with SNP1NN, SNP2NN and SNP3NN

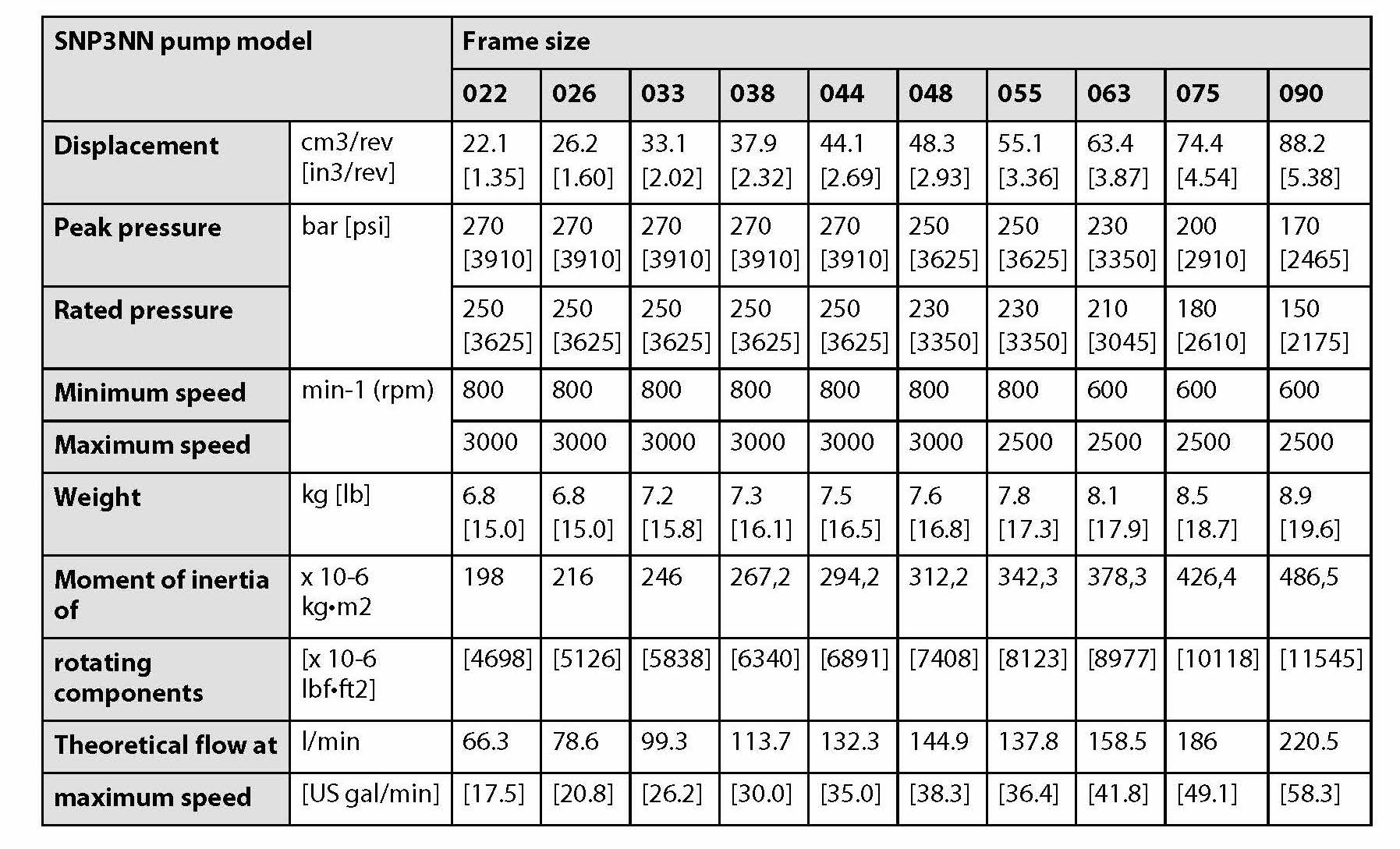

产品参数
